NEW QUESTION # 101
An organization heeds to procure an enterprise software system to increase cross-selling opportunities and better rack prospect data.
Which category of enterprise software has these core capabilities, when used for its typical and intended purpose?
- A. IT Service Management (ITSM)
- B. Customer Relationship Management (CRM)
- C. Supply Chain Management (SCM)
- D. Business-to-Business (A2B)
Answer: B
NEW QUESTION # 102
Which key DevOps practice and associated Anypoint Platform component should a MuteSoft integration team adopt to improve delivery quality?
- A. Automated testing with MUnit
- B. A Continuous design with API Designer
- C. Passive monitoring with Anypoint Monitoring
- D. Manual testing with Anypoint Studio
Answer: A
Explanation:
To improve delivery quality, a MuleSoft integration team should adopt automated testing with MUnit. MUnit is MuleSoft's testing framework that allows developers to create, design, and run unit and integration tests on their Mule applications. Automated testing with MUnit ensures that each part of the Mule application is tested for correctness and performance, catching issues early in the development cycle. This practice leads to higher quality code, reduced defects, and more reliable integrations.
Other practices mentioned, such as continuous design with API Designer and passive monitoring with Anypoint Monitoring, are important but do not directly address the need for rigorous and automated testing to ensure quality.
References
* MuleSoft Documentation on MUnit
* Best Practices for Automated Testing with MUnit
NEW QUESTION # 103
What Mule application can have API policies applied by Anypoint Platform to the endpoint exposed by that Mule application?
- A. A Mule application that accepts gRPC requests over HTTP/2
- B. A Mule application that accepts JSON requests over WebSocket
- C. A Mule application that accepts JSON requests over TCP but is NOT required to provide a response.
- D. A Mule application that accepts requests over HTTP/1x
Answer: D
Explanation:
* HTTP/1.1 keeps all requests and responses in plain text format.
* HTTP/2 uses the binary framing layer to encapsulate all messages in binary format, while still maintaining HTTP semantics, such as verbs, methods, and headers. It came into use in 2015, and offers several methods to decrease latency, especially when dealing with mobile platforms and server-intensive graphics and videos
* Currently, Mule application can have API policies only for Mule application that accepts requests over HTTP/1x
NEW QUESTION # 104
A system API EmployeeSAPI is used to fetch employee's data from an underlying SQL database.
The architect must design a caching strategy to query the database only when there is an update to the employees stable or else return a cached response in order to minimize the number of redundant transactions being handled by the database.
What must the architect do to achieve the caching objective?
- A. Use a Scheduler with a fixed frequency every hour triggering an invalidate cache flow Use an object store caching strategy and set expiration interval to 1-hour
- B. Use an On Table Row on employees table and call invalidate cache
Use an object store caching strategy and expiration interval to empty - C. Use a Scheduler with a fixed frequency every hour triggering an invalidate cache flow Use an object store caching strategy and expiration interval to empty
- D. Use an on table rule on employees table call invalidate cache and said new employees data to cache Use an object store caching strategy and set expiration interval to 1-hour
Answer: B
NEW QUESTION # 105
What Mule application can have API policies applied by Anypoint Platform to the endpoint exposed by that Mule application?
- A. A Mule application that accepts gRPC requests over HTTP/2
- B. A Mule application that accepts JSON requests over WebSocket
- C. A Mule application that accepts JSON requests over TCP but is NOT required to provide a response.
- D. A Mule application that accepts requests over HTTP/1x
Answer: D
NEW QUESTION # 106
Refer to the exhibit.
An organization is sizing an Anypoint VPC for the non-production deployments of those Mule applications that connect to the organization's on-premises systems. This applies to approx. 60 Mule applications. Each application is deployed to two CloudHub i workers. The organization currently has three non-production environments (DEV, SIT and UAT) that share this VPC. The AWS region of the VPC has two AZs.
The organization has a very mature DevOps approach which automatically progresses each application through all non-production environments before automatically deploying to production. This process results in several Mule application deployments per hour, using CloudHub's normal zero-downtime deployment feature.
What is a CIDR block for this VPC that results in the smallest usable private IP address range?
- A. 10.0.0.0/22 (1024 IPs)
- B. 10.0.0.0/26 (64 IPS)
- C. 10.0.0.0/24 (256 IPs)
- D. 10.0.0.0/25 (128 IPs)
Answer: A
Explanation:
Mule applications are deployed in CloudHub workers and each worker is assigned with a dedicated IP * For zero downtime deployment, each worker in CloudHub needs additional IP addresses * A few IPs in a VPC are reserved for infrastructure (generally 2 IPs) * The IP addresses are usually in a private range with a subnet block specifier, such as 10.0.0.1/24 * The smallest CIDR network subnet block you can assign for your VPC is /24 (256 IP addresses) (60*3 env * 2 worker per application ) + 50% of (total) for zero downtime = 540 In this case correct answer is 10.0.0.0/22 as this provided 1024 IP's .
Other IP's are insufficient.
NEW QUESTION # 107
Mule application A receives a request Anypoint MQ message REQU with a payload containing a variable-length list of request objects. Application A uses the For Each scope to split the list into individual objects and sends each object as a message to an Anypoint MQ queue.
Service S listens on that queue, processes each message independently of all other messages, and sends a response message to a response queue.
Application A listens on that response queue and must in turn create and publish a response Anypoint MQ message RESP with a payload containing the list of responses sent by service S in the same order as the request objects originally sent in REQU.
Assume successful response messages are returned by service S for all request messages.
What is required so that application A can ensure that the length and order of the list of objects in RESP and REQU match, while at the same time maximizing message throughput?
- A. Keep track of the list length and all object indices in REQU, both in the For Each scope and in all communication involving service Use persistent storage when creating RESP
- B. Use a Scatter-Gather within the For Each scope to ensure response message order Configure the Scatter-Gather with a persistent object store
- C. Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU
- D. Use an Async scope within the For Each scope and collect response messages in a second For Each scope in the order In which they arrive, then send RESP using this list of responses
Answer: A
Explanation:
Correct answer is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU : Using Anypoint MQ, you can create two types of queues: Standard queue These queues don't guarantee a specific message order. Standard queues are the best fit for applications in which messages must be delivered quickly. FIFO (first in, first out) queue These queues ensure that your messages arrive in order. FIFO queues are the best fit for applications requiring strict message ordering and exactly-once delivery, but in which message delivery speed is of less importance Use of FIFO queue is no where in the option and also it decreased throughput. Similarly persistent object store is not the preferred solution approach when you maximizing message throughput. This rules out one of the options. Scatter Gather does not support ObjectStore. This rules out one of the options. Standard Anypoint MQ queues don't guarantee a specific message order hence using another for each block to collect response wont work as requirement here is to ensure the order. Hence considering all the above factors the feasible approach is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU
NEW QUESTION # 108
What comparison is true about a CloudHub Dedicated Load Balancer (DLB) vs. the CloudHub Shared Load Balancer (SLB)?
- A. Both a DLB and the SLB implement load balancing by sending HTTP requests to workers with the lowest workloads
- B. Only a DLB allows the configuration of a custom TLS server certificate
- C. Only the SLB can forward HTTP traffic to the VPC-internal ports of the CloudHub workers
- D. Both a DLB and the SLB allow the configuration of access control via IP whitelists
Answer: B
Explanation:
* Shared load balancers don't allow you to configure custom SSL certificates or proxy rules
* Dedicated Load Balancer are optional but you need to purchase them additionally if needed.
* TLS is a cryptographic protocol that provides communications security for your Mule app. TLS offers many different ways of exchanging keys for authentication, encrypting data, and guaranteeing message integrity.
* The CloudHub Shared Load Balancer terminates TLS connections and uses its own server-side certificate.
* Only a DLB allows the configuration of a custom TLS server certificate
* DLB enables you to define SSL configurations to provide custom certificates and optionally enforce two- way SSL client authentication.
* To use a DLB in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.
* MuleSoft Reference: https://docs.mulesoft.com/runtime-manager/dedicated-load-balancer-tutorial Additional Info on SLB Vs DLB:

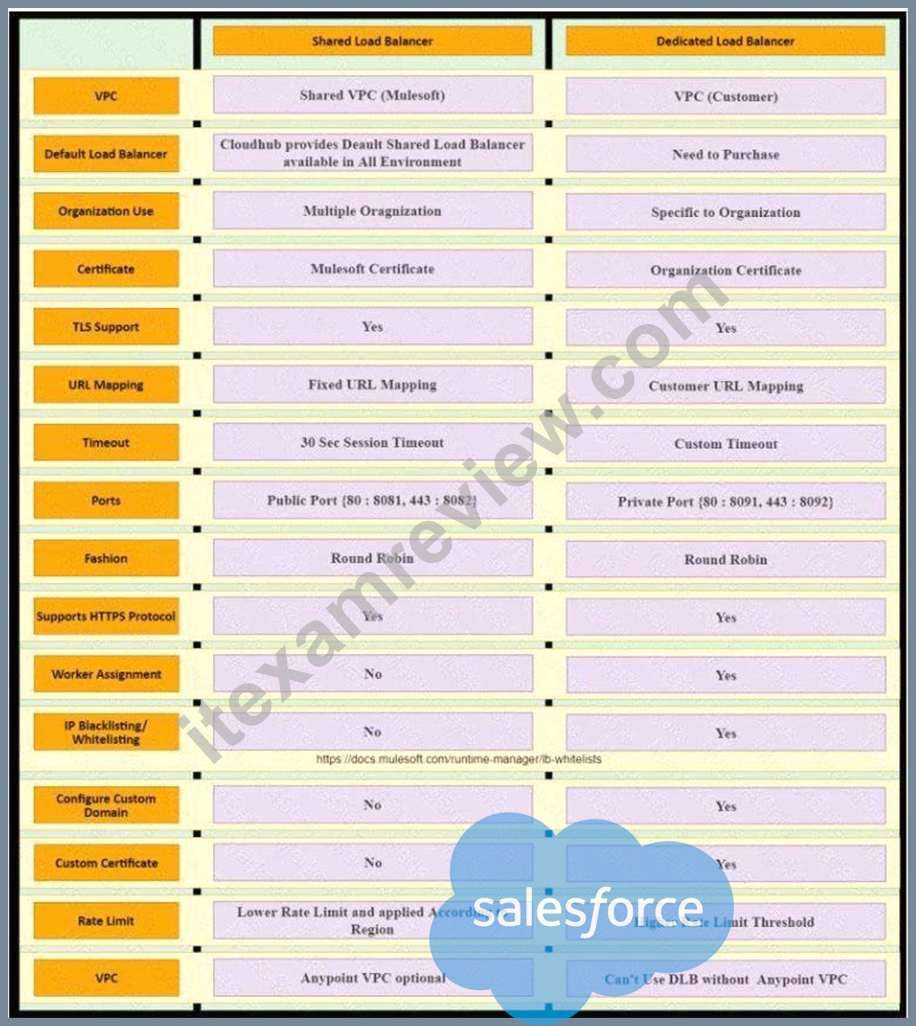

Table Description automatically generated
NEW QUESTION # 109
A global, high-volume shopping Mule application is being built and will be deployed to CloudHub. To improve performance, the Mule application uses a Cache scope that maintains cache state in a CloudHub object store. Web clients will access the Mule application over HTTP from all around the world, with peak volume coinciding with business hours in the web client's geographic location. To achieve optimal performance, what Anypoint Platform region should be chosen for the CloudHub object store?
- A. Choose the same region as to where the Mule application is deployed
- B. Choose a region that is the traffic-weighted geographic center of all web clients
- C. Choose the US-West region, the only supported region for CloudHub object stores
- D. Choose the geographically closest available region for each web client
Answer: A
Explanation:
CloudHub object store should be in same region where the Mule application is deployed. This will give optimal performance.
Before learning about Cache scope and object store in Mule 4 we understand what is in general Caching is and other related things.
WHAT DOES "CACHING" MEAN?
Caching is the process of storing frequently used data in memory, file system or database which saves processing time and load if it would have to be accessed from original source location every time.
In computing, a cache is a high-speed data storage layer which stores a subset of data, so that future requests for that data are served up faster than is possible by accessing the data's primary storage location. Caching allows you to efficiently reuse previously retrieved or computed data.
How does Caching work?
The data in a cache is generally stored in fast access hardware such as RAM (Random-access memory) and may also be used in correlation with a software component. A cache's primary purpose is to increase data retrieval performance by reducing the need to access the underlying slower storage layer.
Caching in MULE 4
In Mule 4 caching can be achieved in mule using cache scope and/or object-store. Cache scope internally uses Object Store to store the data.
What is Object Store
Object Store lets applications store data and states across batch processes, Mule components, and applications, from within an application. If used on cloud hub, the object store is shared between applications deployed on Cluster.
Cache Scope is used in below-mentioned cases:
* Need to store the whole response from the outbound processor
* Data returned from the outbound processor does not change very frequently
* As Cache scope internally handle the cache hit and cache miss scenarios it is more readable Object Store is used in below-mentioned cases:
* Need to store custom/intermediary data
* To store watermarks
* Sharing the data/stage across applications, schedulers, batch.
If CloudHub object store is in same region where the Mule application is deployed it will aid in fast access of data and give optimal performance.
NEW QUESTION # 110
An API client is implemented as a Mule application that includes an HTTP Request operation using a default configuration. The HTTP Request operation invokes an external API that follows standard HTTP status code conventions, which causes the HTTP Request operation to return a 4xx status code.
What is a possible cause of this status code response?
- A. An error occurred inside the external API implementation when processing the HTTP request that was received from the outbound HTTP Request operation of the Mule application
- B. The HTTP response cannot be interpreted by the HTTP Request operation of the Mule application after it was received from the external API
- C. The external API reported that the API implementation has moved to a different external endpoint
- D. The external API reported an error with the HTTP request that was received from the outbound HTTP Request operation of the Mule application
Answer: D
Explanation:
Correct choice is: "The external API reported an error with the HTTP request that was received from the outbound HTTP Request operation of the Mule application" Understanding HTTP 4XX Client Error Response Codes : A 4XX Error is an error that arises in cases where there is a problem with the user's request, and not with the server.
Such cases usually arise when a user's access to a webpage is restricted, the user misspells the URL, or when a webpage is nonexistent or removed from the public's view.
In short, it is an error that occurs because of a mismatch between what a user is trying to access, and its availability to the user - either because the user does not have the right to access it, or because what the user is trying to access simply does not exist. Some of the examples of 4XX errors are
400 Bad Request The server could not understand the request due to invalid syntax. 401 Unauthorized Although the HTTP standard specifies "unauthorized", semantically this response means "unauthenticated".
That is, the client must authenticate itself to get the requested response. 403 Forbidden The client does not have access rights to the content; that is, it is unauthorized, so the server is refusing to give the requested resource. Unlike 401, the client's identity is known to the server. 404 Not Found The server can not find the requested resource. In the browser, this means the URL is not recognized. In an API, this can also mean that the endpoint is valid but the resource itself does not exist. Servers may also send this response instead of 403 to hide the existence of a resource from an unauthorized client. This response code is probably the most famous one due to its frequent occurrence on the web. 405 Method Not Allowed The request method is known by the server but has been disabled and cannot be used. For example, an API may forbid DELETE-ing a resource. The two mandatory methods, GET and HEAD, must never be disabled and should not return this error code. 406 Not Acceptable This response is sent when the web server, after performing server-driven content negotiation, doesn't find any content that conforms to the criteria given by the user agent. The external API reported that the API implementation has moved to a different external endpoint cannot be the correct answer as in this situation 301 Moved Permanently The URL of the requested resource has been changed permanently. The new URL is given in the response.
---------------------------------------------------------------------------------------------------------------------------------------- In Lay man's term the scenario would be: API CLIENT -> MuleSoft API - HTTP request "Hey, API..
process this" -> External API API CLIENT <- MuleSoft API - http response "I'm sorry Client.. something is wrong with that request" <- (4XX) External API
NEW QUESTION # 111
The AnyAirline organization's passenger reservations center is designing an integration solution that combines invocations of three different System APIs (bookFlight, bookHotel, and bookCar) in a business transaction. Each System API makes calls to a single database.
The entire business transaction must be rolled back when at least one of the APIs fails.
What is the most idiomatic (used for its intended purpose) way to integrate these APIs in near real-time that provides the best balance of consistency, performance, and reliability?
- A. Implement local transactions in each API implementation
Coordinate between the API implementations using a Saga pattern
Apply various compensating actions depending on where a failure occurs - B. Implement eXtended Architecture (XA) transactions between the API implementations Coordinate between the API implementations using a Saga pattern Implement caching in each API implementation to improve performance
- C. Implement local transactions within each API implementation
Configure each API implementation to also participate in the same eXtended Architecture (XA) transaction Implement caching in each API implementation to improve performance - D. Implement an eXtended Architecture (XA) transaction manager in a Mule application using a Saga pattern Connect each API implementation with the Mule application using XA transactions Apply various compensating actions depending on where a failure occurs
Answer: A
NEW QUESTION # 112
An API client makes an HTTP request to an API gateway with an Accept header containing the value'' application''.
What is a valid HTTP response payload for this request in the client requested data format?
- A. {"status" "healthy"}
- B. status('healthy")
- C. <status>healthy</status>
- D. status: healthy
Answer: A
NEW QUESTION # 113

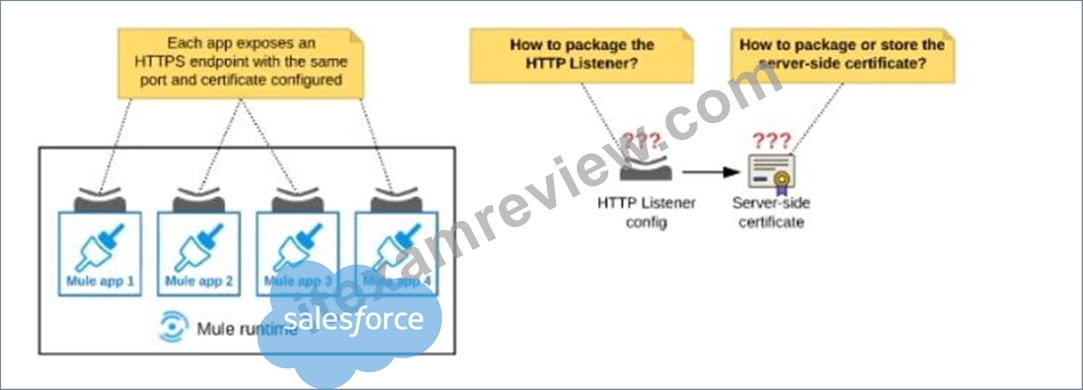

Refer to the exhibit.
An organization deploys multiple Mule applications to the same customer -hosted Mule runtime. Many of these Mule applications must expose an HTTPS endpoint on the same port using a server-side certificate that rotates often.
What is the most effective way to package the HTTP Listener and package or store the server-side certificate when deploying these Mule applications, so the disruption caused by certificate rotation is minimized?
- A. Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing It from all Mule applications that need to expose an HTTPS endpoint. Package the server-side certificate in the SAME Mule DOMAIN project Go to Set
- B. Package an HTTPS Listener configuration In all Mule APPLICATIONS that need to expose an HTTPS endpoint Package the server-side certificate in a NEW Mule DOMAIN project
- C. Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing it from all Mule applications that need to expose an HTTPS endpoint Package the server-side certificate in ALL Mule APPLICATIONS that need to expose an HTTPS endpoint
- D. Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing it from all Mule applications that need to expose an HTTPS endpoint. Store the server-side certificate in a shared filesystem location in the Mule runtime's classpath, OUTSIDE the Mule DOMAIN or any Mule APPLICATION
Answer: D
Explanation:
In this scenario, both A & C will work, but A is better as it does not require repackage to the domain project at all.
Correct answer is Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing it from all Mule applications that need to expose an HTTPS endpoint. Store the server-side certificate in a shared filesystem location in the Mule runtime's classpath, OUTSIDE the Mule DOMAIN or any Mule APPLICATION.

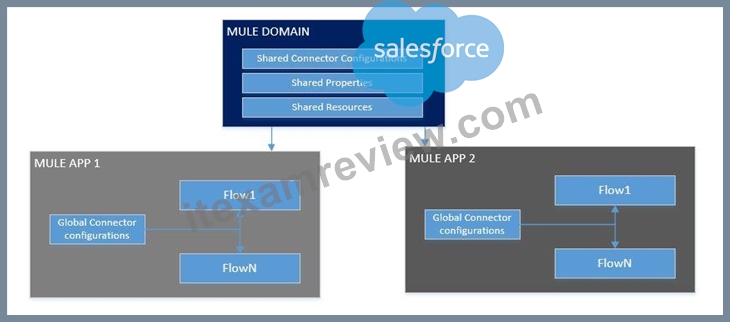

What is Mule Domain Project?
* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.
* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.
* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.
You can start using domains in only three steps:
1) Create a Mule Domain project
2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project
3) Modify the value of domain in mule-deploy.properties file of the applications
Use a certificate defined in already deployed Mule domain Configure the certificate in the domain so that the API proxy HTTPS Listener references it, and then deploy the secure API proxy to the target Runtime Fabric, or on-premises target. (CloudHub is not supported with this approach because it does not support Mule domains.)
NEW QUESTION # 114
A company is planning to extend its Mule APIs to the Europe region. Currently all new applications are deployed to Cloudhub in the US region following this naming convention{API name}-{environment}. for example, Orders-SAPI-dev, Orders-SAPI-prod etc.
Considering there is no network restriction to block communications between API's, what strategy should be implemented in order to apply the same new API's running in the EU region of CloudHub as well to minimize latency between API's and target users and systems in Europe?
- A. Set region property to Europe (eu-de) in API manager for all the mule application No need to change the naming convention
- B. Set region property to Europe (eu-de) in runtime manager for all the mule application Change the naming convention to {API name}-{environment}-{region} and communicate this change to the consuming applications and users
- C. Set region property to Europe (eu-de) in API manager for all the mule application Change the naming convention to {API name}-{environment}-{region} and communicate this change to the consuming applications and users
- D. Set region property to Europe (eu-de) in runtime manager for all the mule application No need to change the naming convention
Answer: B
NEW QUESTION # 115
A customer wants to use the mapped diagnostic context (MDC) and logging variables to enrich its logging and improve tracking by providing more context in the logs.
The customer also wants to improve the throughput and lower the latency of message processing.
As an Mulesoft integration architect can you advise, what should the customer implement to meet these requirements?
- A. Useasync logger at the level greater than INFO and use pattern layout with [%MDC] in the log4j2,xml configuration file and then configure the logging variables
- B. Use synchronous logging at the INFO DEBUG or Trace level and use pattern layout with [%MDC] in the log4j2.xml configuration file and then configure the logging variables
- C. Use synchronous logging and use pattern layout with [%MDC] in the log4j2.xml configuration file and then configure the logging variables
- D. Useasync logger at the level equal to DEBUG orTRACEand use pattern
layout with [%MDC] in the log4j2.xml configuration file and then configure the logging variables
Answer: A
NEW QUESTION # 116
Which Exchange asset type represents a complete API specification in RAML or OAS format?
- A. API Spec Fragments
- B. SOAP APIs
- C. Connectors
- D. REST APIs
Answer: D
Explanation:
In MuleSoft's Anypoint Exchange, a complete API specification in RAML (RESTful API Modeling Language) or OAS (OpenAPI Specification) format is represented as a "REST API". This asset type provides a comprehensive description of the API, including endpoints, methods, request/response structures, and other relevant details. It serves as the blueprint for implementing and consuming the API, ensuring that all stakeholders have a clear understanding of its functionality and design.
Other asset types like connectors, API spec fragments, and SOAP APIs represent different components or partial specifications, but only REST APIs provide the full specification in the mentioned formats.
References
* MuleSoft Anypoint Exchange Documentation
* API Specification Documentation on RAML and OAS
NEW QUESTION # 117
An API client is implemented as a Mule application that includes an HTTP Request operation using a default configuration. The HTTP Request operation invokes an external API that follows standard HTTP status code conventions, which causes the HTTP Request operation to return a 4xx status code.
What is a possible cause of this status code response?
- A. An error occurred inside the external API implementation when processing the HTTP request that was received from the outbound HTTP Request operation of the Mule application
- B. The HTTP response cannot be interpreted by the HTTP Request operation of the Mule application after it was received from the external API
- C. The external API reported that the API implementation has moved to a different external endpoint
- D. The external API reported an error with the HTTP request that was received from the outbound HTTP Request operation of the Mule application
Answer: D
Explanation:
Correct choice is: "The external API reported an error with the HTTP request that was received from the outbound HTTP Request operation of the Mule application" Understanding HTTP 4XX Client Error Response Codes : A 4XX Error is an error that arises in cases where there is a problem with the user's request, and not with the server.
Such cases usually arise when a user's access to a webpage is restricted, the user misspells the URL, or when a webpage is nonexistent or removed from the public's view.
In short, it is an error that occurs because of a mismatch between what a user is trying to access, and its availability to the user - either because the user does not have the right to access it, or because what the user is trying to access simply does not exist. Some of the examples of 4XX errors are
400 Bad Request The server could not understand the request due to invalid syntax. 401 Unauthorized Although the HTTP standard specifies "unauthorized", semantically this response means "unauthenticated". That is, the client must authenticate itself to get the requested response. 403 Forbidden The client does not have access rights to the content; that is, it is unauthorized, so the server is refusing to give the requested resource. Unlike 401, the client's identity is known to the server. 404 Not Found The server can not find the requested resource. In the browser, this means the URL is not recognized. In an API, this can also mean that the endpoint is valid but the resource itself does not exist. Servers may also send this response instead of 403 to hide the existence of a resource from an unauthorized client. This response code is probably the most famous one due to its frequent occurrence on the web. 405 Method Not Allowed The request method is known by the server but has been disabled and cannot be used. For example, an API may forbid DELETE-ing a resource. The two mandatory methods, GET and HEAD, must never be disabled and should not return this error code. 406 Not Acceptable This response is sent when the web server, after performing server-driven content negotiation, doesn't find any content that conforms to the criteria given by the user agent. The external API reported that the API implementation has moved to a different external endpoint cannot be the correct answer as in this situation 301 Moved Permanently The URL of the requested resource has been changed permanently. The new URL is given in the response. ----------------------------------------------------------------------------------------------------------------------------------------------- In Lay man's term the scenario would be: API CLIENT -> MuleSoft API - HTTP request "Hey, API.. process this" -> External API API CLIENT <- MuleSoft API - http response "I'm sorry Client.. something is wrong with that request" <- (4XX) External API
NEW QUESTION # 118
According to MuleSoft's recommended REST conventions, which HTTP method should an API use to specify how AP\ clients can request data from a specified resource?
- A. PUT
- B. PATCH
- C. GET
- D. POST
Answer: C
Explanation:
According to MuleSoft's recommended REST conventions, the HTTP method GET should be used to specify how API clients can request data from a specified resource. The GET method is designed to retrieve data from a server at the specified resource. It is one of the most common HTTP methods used in RESTful APIs, ensuring that data retrieval is performed without any side effects on the server or resource.
References:
* MuleSoft REST API Design Best Practices
* HTTP Methods in RESTful Services
NEW QUESTION # 119
A company is designing a mule application to consume batch data from a partner's ftps server The data files have been compressed and then digitally signed using PGP.
What inputs are required for the application to securely consumed these files?
- A. ATLS context Key Store requiring the private key and certificate for the company PGP public key of partner PGP private key for the company
- B. The PGP public key of the partner
The PGP private key for the company
The FTP username and password - C. TLS context trust or containing a public certificate for the ftps server The FTP username and password The PGP public key of the partner
- D. ATLS context first store containing a public certificate for partner ftps server and the PGP public key of the partner TLS contact Key Store containing the FTP credentials
Answer: B
NEW QUESTION # 120
Refer to the exhibit.
A Mule 4 application has a parent flow that breaks up a JSON array payload into 200 separate items, then sends each item one at a time inside an Async scope to a VM queue.
A second flow to process orders has a VM Listener on the same VM queue. The rest of this flow processes each received item by writing the item to a database.
This Mule application is deployed to four CloudHub workers with persistent queues enabled.
What message processing guarantees are provided by the VM queue and the CloudHub workers, and how are VM messages routed among the CloudHub workers for each invocation of the parent flow under normal operating conditions where all the CloudHub workers remain online?
- A. ALL Item VM messages are processed AT LEAST ONCE by the SAME CloudHub worker where the parent flow was invoked This one CloudHub worker processes ALL 200 item VM messages
- B. EACH item VM message is processed AT LEAST ONCE by ONE ARBITRARY CloudHub worker Each of the four CloudHub workers can be expected to process some item VM messages
- C. ALL item VM messages are processed AT MOST ONCE by ONE ARBITRARY CloudHub worker This one CloudHub worker processes ALL 200 item VM messages
- D. EACH item VM message is processed AT MOST ONCE by ONE CloudHub worker, with workers chosen in a deterministic round-robin fashion Each of the four CloudHub workers can be expected to process 1/4 of the Item VM messages (about 50 items)
Answer: B
Explanation:
Correct answer is EACH item VM message is processed AT LEAST ONCE by ONE ARBITRARY CloudHub worker. Each of the four CloudHub workers can be expected to process some item VM messages In Cloudhub, each persistent VM queue is listened on by every CloudHub worker - But each message is read and processed at least once by only one CloudHub worker and the duplicate processing is possible - If the CloudHub worker fails , the message can be read by another worker to prevent loss of messages and this can lead to duplicate processing - By default , every CloudHub worker's VM Listener receives different messages from VM Queue Referenece: https://dzone.com/articles/deploying-mulesoft-application-on-1-worker-vs-mult
NEW QUESTION # 121
Which Anypoint Platform component should a MuleSoft developer use to create an API specification prior to building the API implementation?
- A. MUnit
- B. API Designer
- C. Runtime Manager
- D. API Manager
Answer: B
Explanation:
A MuleSoft developer should use API Designer to create an API specification prior to building the API implementation. API Designer is a component of Anypoint Platform that provides a web-based interface for designing and documenting APIs. It supports API modeling languages such as RAML and OAS, enabling developers to define the structure, resources, and operations of an API before proceeding with implementation. This approach aligns with the design-first methodology, ensuring a well-defined contract for the API.
References:
* Anypoint API Designer
* API Design Best Practices
NEW QUESTION # 122
An integration architect is designing an API that must accept requests from API clients for both XML and JSON content over HTTP/1.1 by default.
Which API architectural style, when used for its intended and typical purposes, should the architect choose to meet these requirements?
- A. SOAP
- B. GraphQL
- C. REST
- D. grRPC
Answer: C
NEW QUESTION # 123
The company's FTPS server login username and password
- A. The partner's PGP public key used by the company to login to the FTPS server. A TLS context key store containing the private key for ftps.partner.com The company's PGP private key that was used to sign the files
- B. TLS context trust store containing a public certificate for the company. The company's PGP public key that was used to sign the files
- C. The partner's PGP public key used by the company to login to the FTPS server. A TLS context key store containing the private key for the company The partner's PGP private key that was used to sign the files
- D. The company's FTPS server login username and password. A TLS context trust store containing a public certificate for ftps.partner.com The partner's PGP public key that was used to sign the files
Answer: B
NEW QUESTION # 124
......
Free MuleSoft-Integration-Architect-I Exam Files Verified & Correct Answers Downloaded Instantly: https://www.itexamreview.com/MuleSoft-Integration-Architect-I-exam-dumps.html
Fast Exam Updates MuleSoft-Integration-Architect-I dumps with PDF Test Engine Practice: https://drive.google.com/open?id=1mX0hJrQiu_lrADWZkHknjlyzb1a8yFbc
